Description
Specifications:
- TR1
- Included in kit:

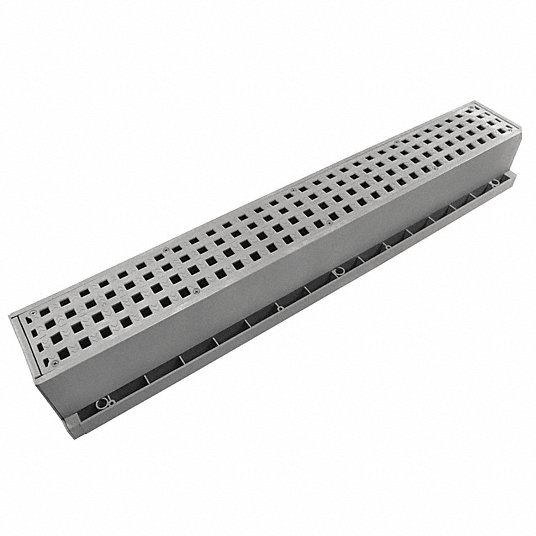

- (1) Trench
- Length: 36″
- Width: 6.75″
- Height: 5″
- (1) ADA Compliant Grate
- Length: 35.75″
- 4.25″
- (2) Snap on end caps
- (1) Trench
Benefits:
- The only injection molding Trench Drain:
- Non-corrosive High Density Polyethylene
- 235 p.s.i. industrial strength
- H-20 wheel load rating
- Comes completely assembled
- Snap-on End Caps: Simply remove an end cap, extend the trench to any length, and re-install end cap.
- Cut to size: The trench may be field cut with a hand saw, and capped with a male end cap or TR1-D4 End Drain.
- Molded-in Ribs: Provide exceptional vertical compression strength- unequaled by other trench designs.
- Choice of 3 Drains: Three bottom drains are molded in. Knock-out membranes allow trench to be drained with 2″ or 3″ schedule 50 or 4″ SDR35 pipe.
- Interlocking Molded Ends: No Need to remove the grate during installation. Simple snap the trenches together for a Tuf-Tite free-flowing kit.
- ADA Compliant Grate: Safe, square 1/2″ x 1/2″ openings. Molded of specially formulated HDPE with no foam or fillers.
- Stainless Screws: The grate is held in place with 10 Type A-SmS screws.
